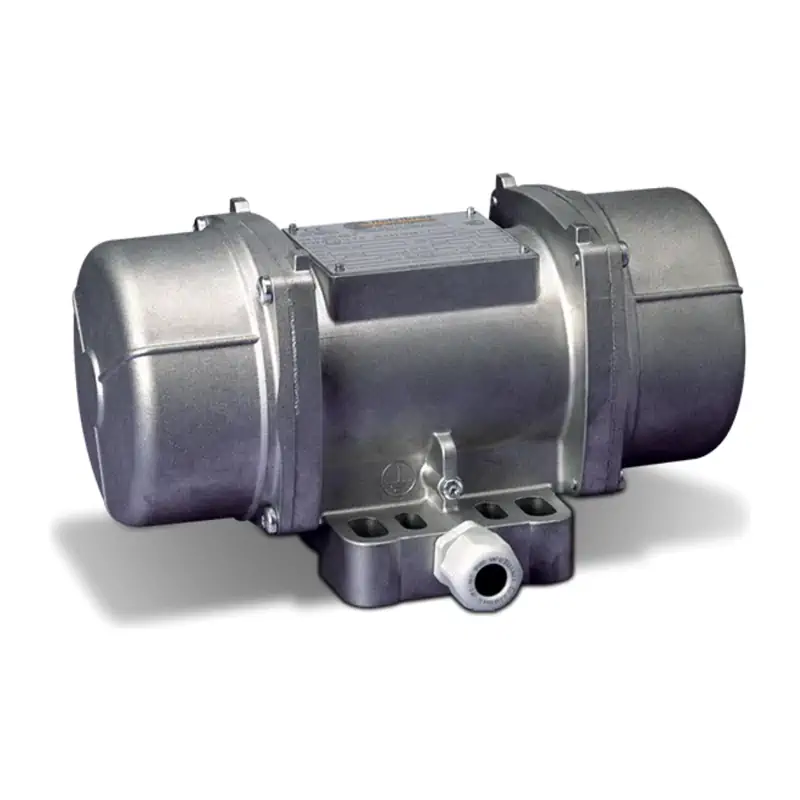

Designed for industrial continuous duty, the M3 series features a compact shape, reduced overall dimensions, terminal box underneath which means also a high electric protection in dusty environments. Multi-holes mounting feet enable M3 series to match several existing mounting plates. M3 series motors comply with the most recent international standards for use in explosive dust atmospheres. Particularly M3 series can be used in zones 21 and 22..
Specification
Brand : Italvibras Type : M3-190 ~ M3-670
CATEGORY : II 2 D LEVEL OF PROTECTION : tD A21 IP66 (ongoing upgrade to Ex tb IIIC Db) TEMPERATURE CLASS : see technical details EC CERTIFICATE : LCIE 05 ATEX 6163 X AREAS OF USE : 21, 22
Power supply : Three-phase voltage from 24V to 690V, 50Hz o 60Hz or single-phase 100-130V, 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.
Polarity : 2 and 4 poles. Functioning : Continual service (S1) at maximum declared centrifugal force and electric power. Centrifugal force : Up to 669 lbs. (3.05 N). Insulation class : Class F (311°F). Electric motor : Three-phase or single-phase asynchronous type. Insulated windings using vacuum encapsulating. The rotor is die cast aluminum.
