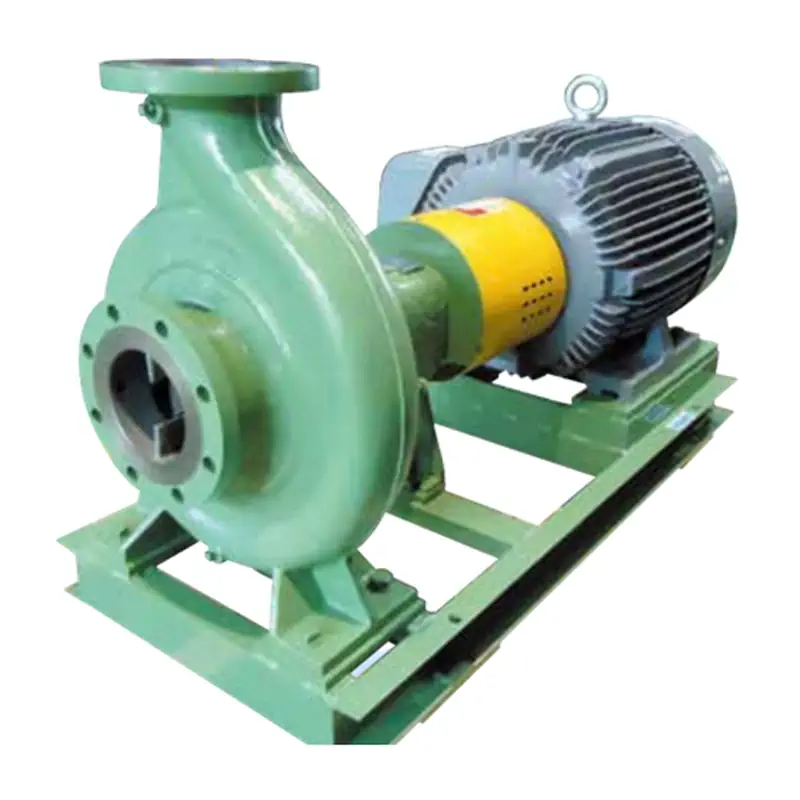

Pompa Torishima ETA-N atau Torishima CEN adalah Pompa Torishima Centrifugal yang paling banyak digunakan untuk keperluan Transfer air PDAM dan Transfer air kebutuhan Gedung. Pompa Torishima memiliki pilihan opsi dengan Material Impeller berbeda yaitu : Impeller Bronze dan Impeller Cast Iron serta Sealing : Gland Packing dan Mechanical Seal. Sehingga pengguna dapat memilih dengan baik sesuai kebutuhan.
Pompa ini memiliki kemampuan data teknis operasi :
Capacity (Q): Up to 620 m3/hr (170l/s)
Total Head (H): Up to 100 m
Temperature (T): -10 to 100 degree celcius
Pressure (P): Up to 10 Bar
Pump Size: 32 to 150 mm
Aplikasi Pompa :
- General Water Supply
- Irigation and Drainage
- Pumping of sea water, brine, alkali and condensate
- Circulating hot and cold water supply
- Sprinkling & fire fighting system
- Swimming Pool
Desain Bentuk Pompa :
- End suction volute pumps with vertical centerline discharge
- Back Pull Out (BPO) design allows the removal all rotating elements without disturbing the casing, piping or motor
